Model：TYL-5902A
Dimensions(mm)：840*630*1290
Wooden box size(mm)：910*700*1440
N.W/G.W(kgs)：145/165
Capacity：1300Pcs/H
Voltage：AC 220V 50HZ
Air pressure：0.45~0.55mpa
Power：1kw
Heal transter temperature：30~281℃

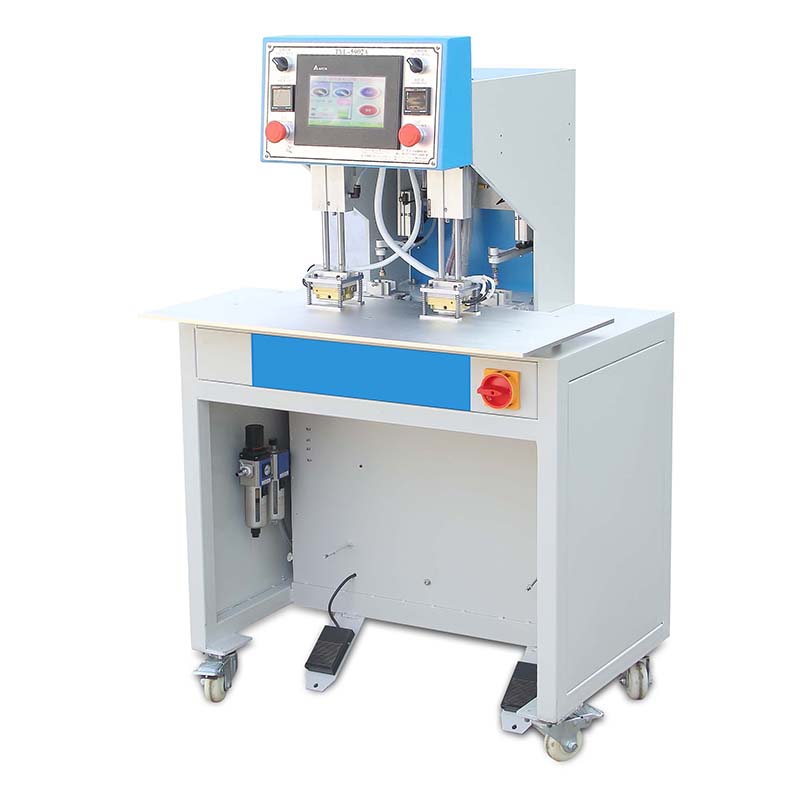

TYL-5902A Double-position label hot stamping machine
Description
Double-position, it is more suitablefor the material which is bigger size and longer pressing time, intersecting working of two positions.
1. Inellctualized human- machine interface, Chinese/English/Vietnamese systems, easy to operate.

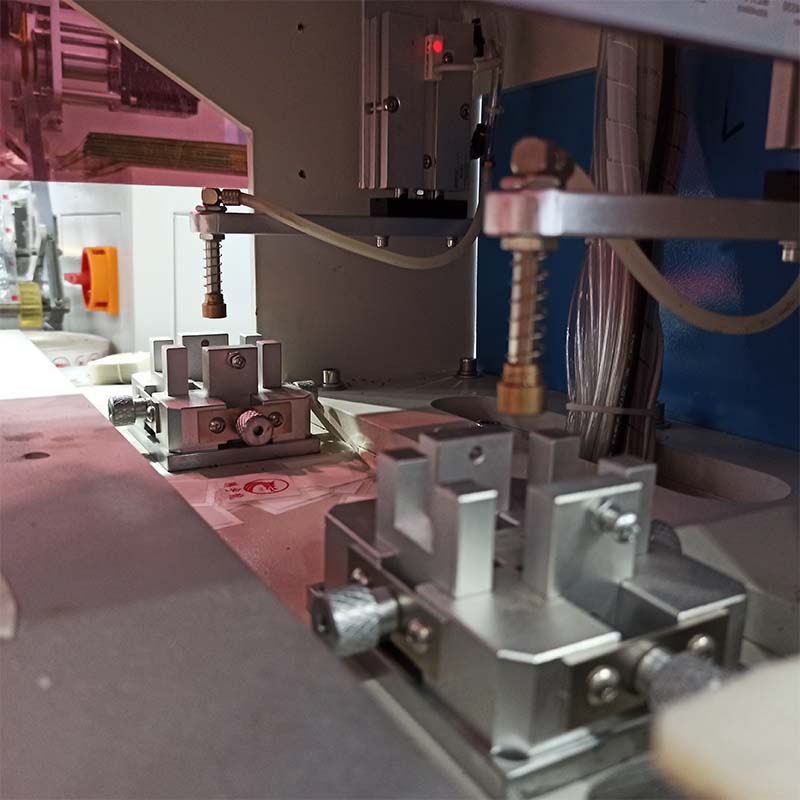

2. Double-position, it is more suitablefor the material which is bigger size and longer pressing time, intersecting working of two positions, when put the material on one position, the other position is on pressing at the same time, save the waiting time, thus production eficiency is effectively improved.
3. Can form a dedicated label printer, can print the label timely according to the requirements.
4. Easy to operate, worker only need put the material according the locating piece, novices can easy to handle, greatly reduce the factory training cost, and the output will not decrease when the silled worker leaves.
5. High precision and high eficiency, the eficiency is 1.5 times of the traditional process.
6. Temperature, pressure, pressing time can be adjusted according to the press efecet. and also can set the trouble alarm of temperature trouble alarm,pneumatic pressure to ensure the product quality.
