Model: TYL-580
Dimensions: 1325x1120x1150（mm）
Disc size: Diameter 1200mm
Position: 8
Voltage: AC220V 50HZ
Power: 1.5kw
Capacity: 1500Pcs/H
Air pressure: 0.45~0.55mpa
Heal transter temperature: 30~250°C

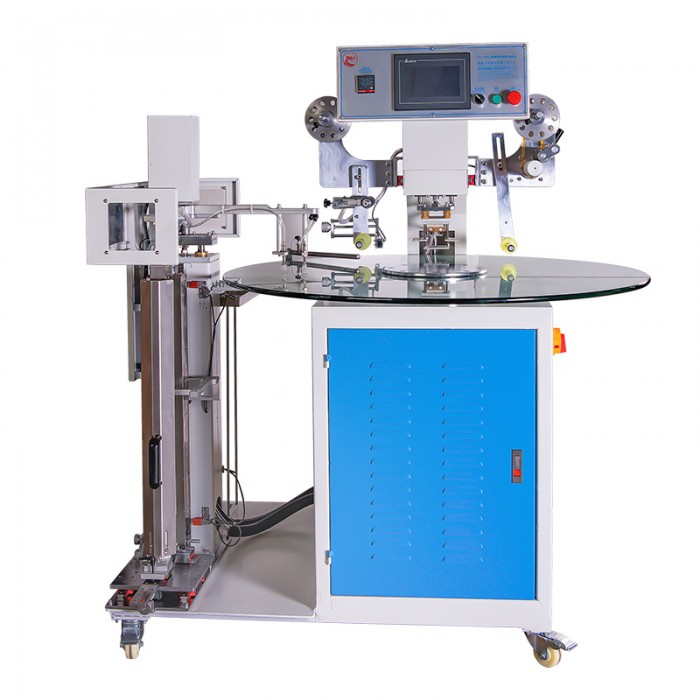

TYL-580 Multi-staion rotary table label hot stamping machine
Description
High fficiency, the maximum yield 1200pcs/ hour, one worker can handle 2 to 3 pcs machineat the same time.
1. Fully automatic feeding, pressing and receiving integration.
2. The control panel is a touch screen, which is simple, fast and stable.
3. It adopts heavy-duty high-precision divider to divide into position, which is accurate and long in use.
4. Imported rodless cylinder is used as the driving force to perform work, with low noise, stable operation and reliable performance.
5. It adopts rotary automatic ingestion and feeding, no need for the operator to manually put the trademark; the productivity is more than 3 times the efficiency of the ordinary machine.
